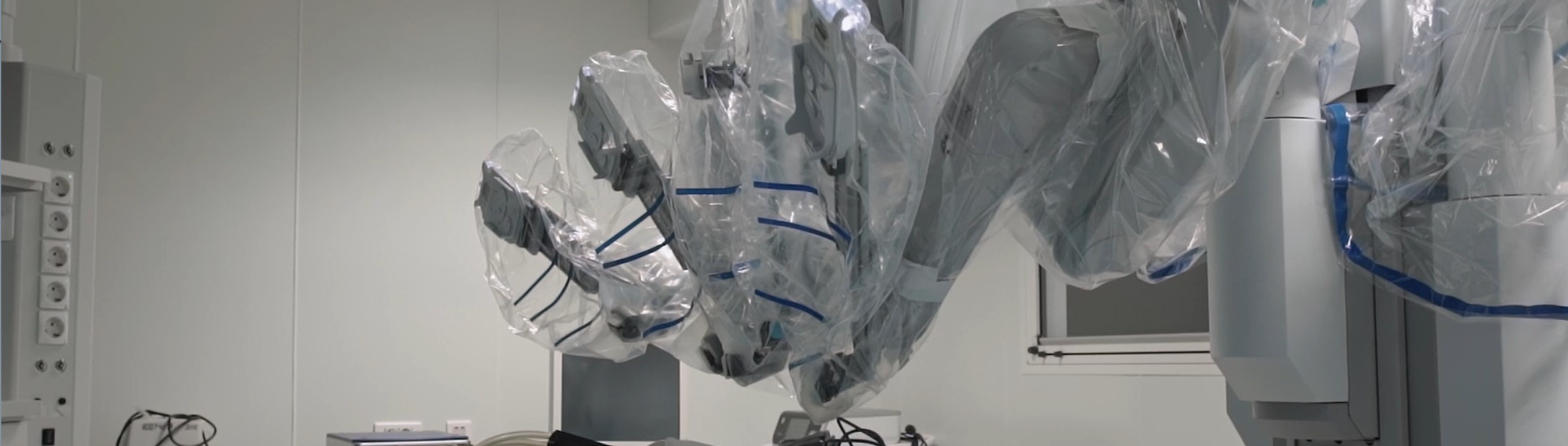

Challenges of surgical robot manufacturing
MedTech industry and especially surgical robot manufacturing is extremely demanding. Precise, accurate and smooth movements of surgery manipulators are crucial for improving patient safety and clinical outcome. Additionally, radiation proofness and magnetic compatibility is increasingly required for radiotherapy applications as well as image-guided interventions.
How PiezoMotor Engineers the Future of Robotics
PiezoMotor technology enables movements in the nanometer range with zero backslash, active position hold and excellent repeatability to ensure that the instrument only moves when the surgeons want it and without wobbling or motion artefacts. We provide motors suitable for CT and MRI guidance systems. Radiation proof, no influence from the magnetic fields and not generating unwanted magnetic fields. This is how we help you solve positioning problems in a compact, precise way with high operational forces.
Linear Direct Drive Extreme Precision Motors
Legs Linear LL06
High Precision 6.5N Piezo Motor
Technology
- Very compact motor (24 x 20 x 11 mm)
- Weights only 16 grams
- 6.5N operational force
- Super high resolution of 80nm with integrated encoder (step size <1nm)
- No backlash
- Zero drift thanks to auto-hold
- Zero power consumption while on hold
Legs Linear LT20 and LT40
High Precision 20-40N Piezo Motors
Technology
- Up to 40N operational force
- Survives ionizing radiation up to 1MGy
- Works in strong magnetic fields and does not generate its own during operation
- External encoder support
- No backlash
- Zero drift thanks to auto-hold
- Zero power consumption while on hold
Key benefits
- Very good integration possibilities due to small body
- All-in-One solution: motor + guiding + encoder integrated together
Key benefits
- Precise manipulation, even for heavy equipment
- Allows real-time imaging while the surgical robot is in use
Full specification for:
Legs Linear LL06
Full specifications for:
Legs Linear LT20 and Legs Linear LT40
Rotary Piezo Motors, Linear Piezo Motors up to 450 Newton and custom solutions
Need more power or rotative movement?
When your application requires higher than 40N operational force or if you wish to have direct rotary drive, then please reach out to us, we have other solutions for you
