Piezo LEGS® Rotary, 80mNm torque
A 80mNm torque output version for normal environments. Built-in encoder or with extended shaft for customer encoder customization.
Rotary Piezo Motor with built in encoder and 80mN, torque output
- Rotary direct drive
- Built in encoder
- 80mNm torque output
- Self-locking
- No backlash
Piezo LEGS® Rotary LR23-80
This is our rotary Piezo LEGS®, with direct drive and 80mNm torque output. The i gives closed loop resolution of 0.2 mrad (0.01°), while open loop resolution is sub-microradian. Full force power-off locking is a safety function inherent to the design. Not designed for vacuum and magnetic environments.
LR23-80 product portfolio
- with encoder
- without encoder
- without encoder and with extended shaft
Specifications Piezo LEGS® LR23-80
| Type | Standard (A) | Standard (A), ext. shaft | Standard (A), encoder |
| Diameter | 23 mm | ||
| Angular range | 360° | ||
| Speed range @ Rhomb, no load, 20 °C, driver dependent | 0–160 (0–21.9 rpm) °/s | ||
| Max operating frequency (driver dependent) | 2.5 kHz | ||
| Step angle, full step @ Delta, no load, 20 °C | 550 µrad | ||
| Motor resolution (open loop, 8192 microsteps) | <1 µrad | ||
| Built in encoder | No | Yes | |
| Encoder type | N/A | Optical | |
| Encoder interface | N/A | Quadrature, incremental | |
| Encoder accuracy | |||
| Encoder resolution | N/A | 0.383 (16384 counts)mrad | |
| Stall torque | 80 mNm | ||
| Holding torque | >80 mNm | ||
| Recommended operating range | 0-40 mNm | ||
| Max. operating voltage | 48 V | ||
| Power consumption | 6 mW/Hz | ||
| Shaft load, max – radial, 6.5 mm from mounting face | 3 N | ||
| Shaft load, max – axial | 2 N | ||
| Shaft press fit force, max | 5 N | ||
| Mechanical size L x D (incl. shaft) | 34.7 x 23 mm | 37.7 x 23 mm | 46.5 x 23 mm |
| Weight | 65 g | 68 g | 80 g |
| Connector motor | Soldered cable w. JST 05SR-3S | Cable attached, driver dependent | |
| Material in motor housing | Stainless steel | ||
| Operating temperature (recommended) | -20 to +70 ºC | ||
| Storage temperature | -20 to +70 ºC | ||
| Control | Open loop or closed loop | ||
| Lifetime | 2,5×109 wfm-steps at 40 mNm, 1atm and 25 ºC | ||
| Max. acceleration | 800 Hz/ms | ||
| Index | N/A | Yes | |

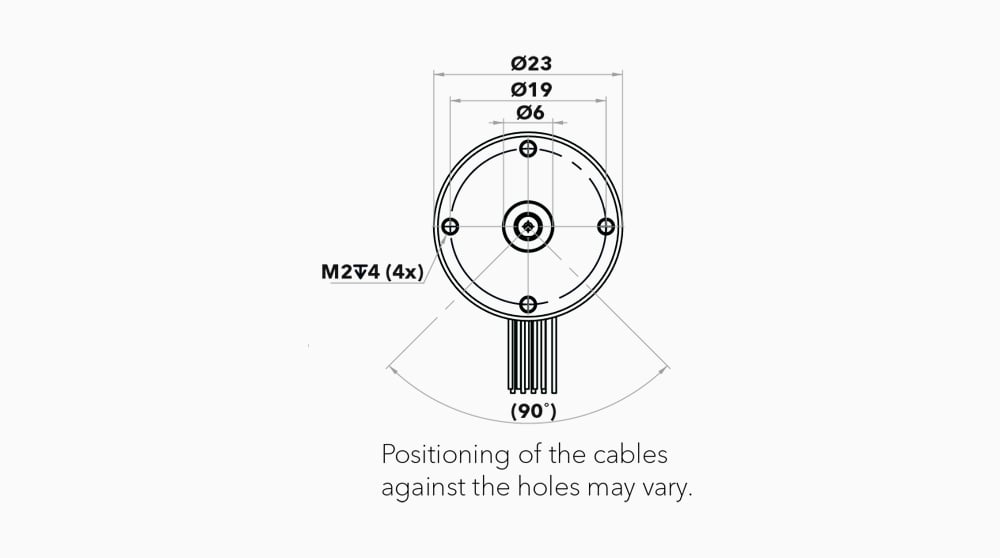

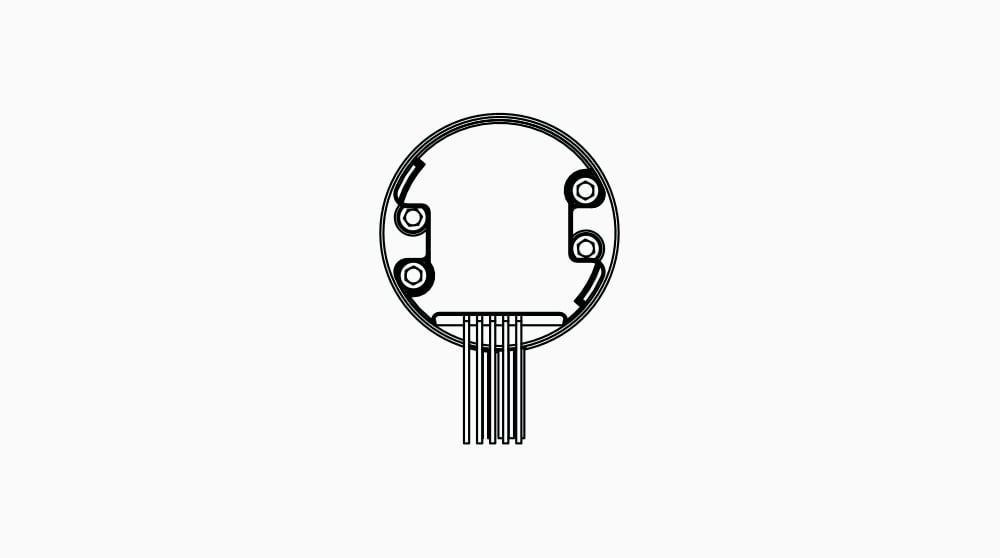

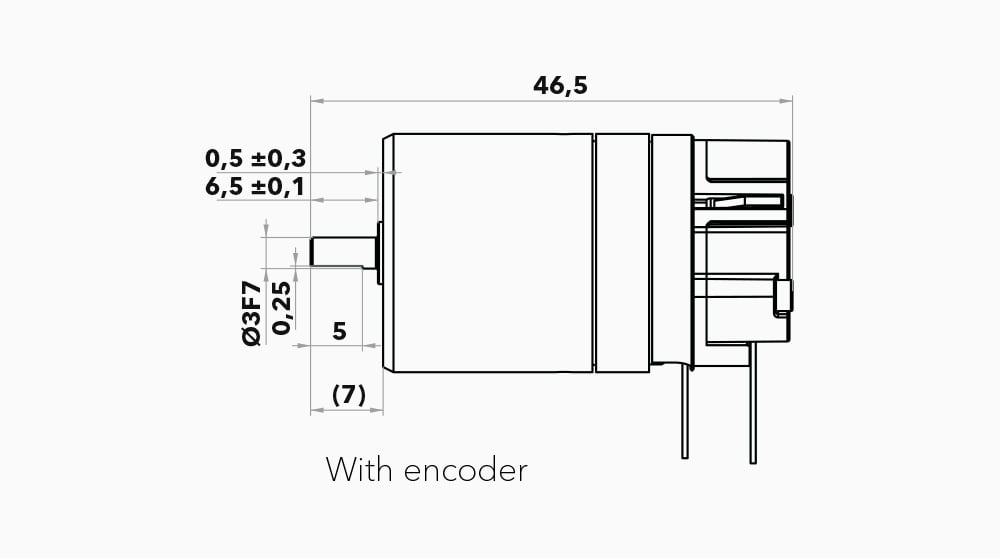

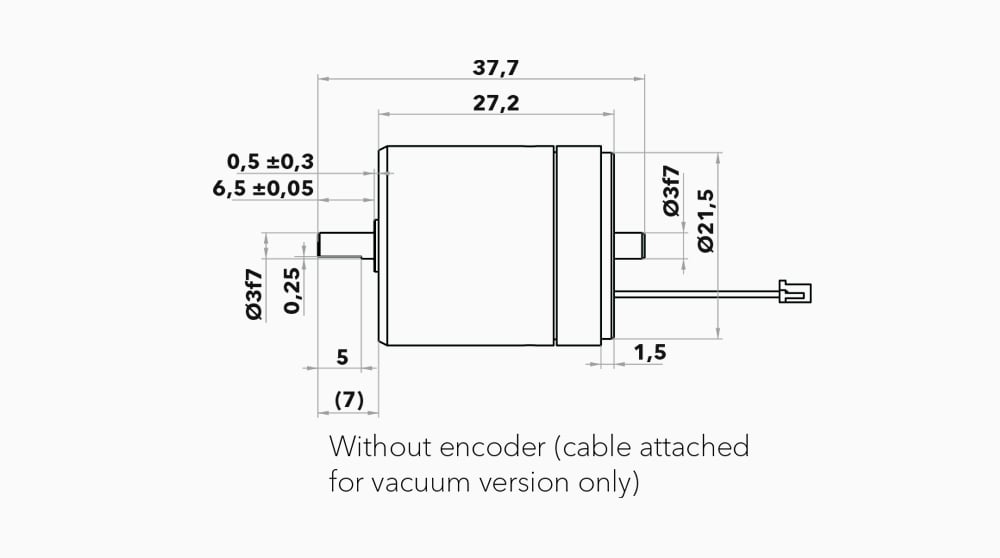

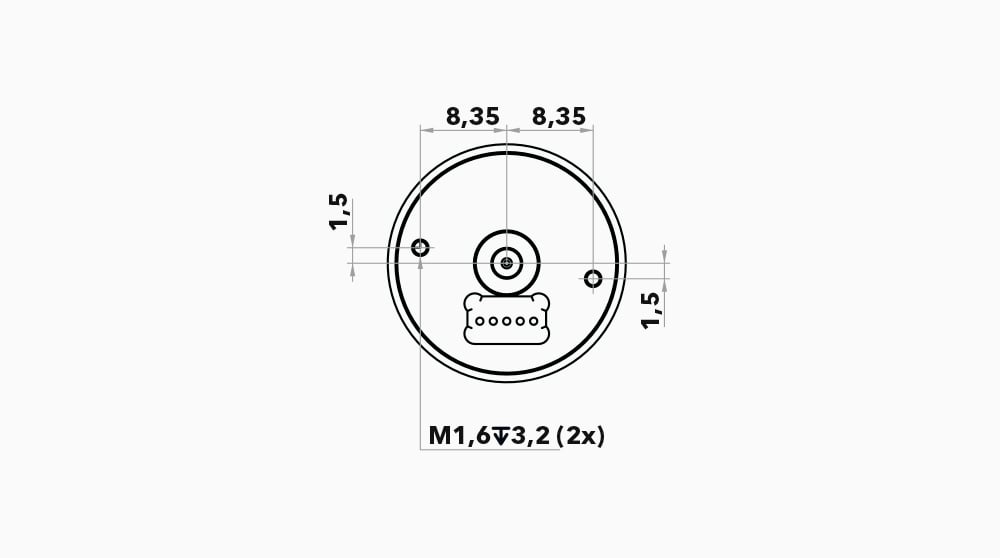

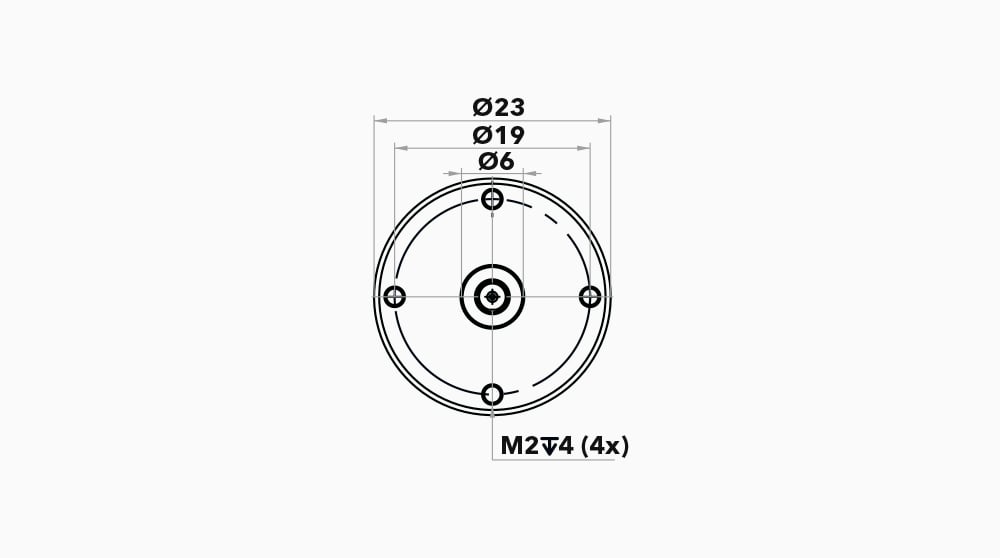

Main dimensions LR23-80

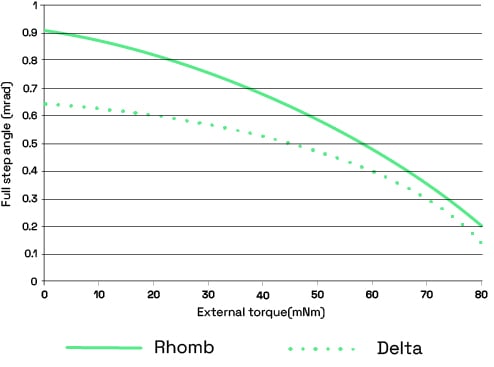

Motor performance
Motor performance with waveform Rhomb (filled) and waveform Delta (dotted). The full step length is the average distance the drive rod moves when the legs take one full step (i.e. for one waveform cycle).
Note: A standard deviation σ of 0.5 μm should be taken into account.
Typical values are given for 20ºC.
Motor speed at 20 ºC no load
|
Waveform
|
Max feq. (Hz)
|
Speed range (mm/s)
|
|
Delta
|
3000
|
0–19 rpm (0–114°/s)
|
|
Rhomb |
0–27 rpm (0–160°/s)
|
Controlling the motor
Our motor control units come in many different versions, with controllers and amplifiers for laboratory use as well as for integration into OEM devices.
We can also license the drivers for customers that want to build their own driver electronics.
